Product Description

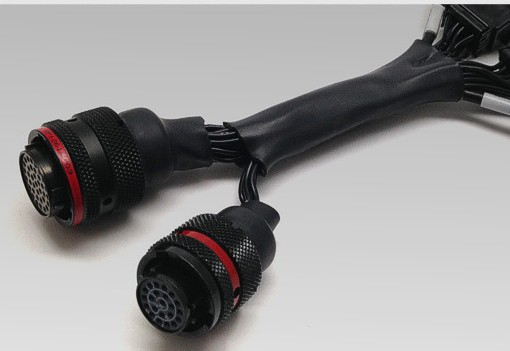

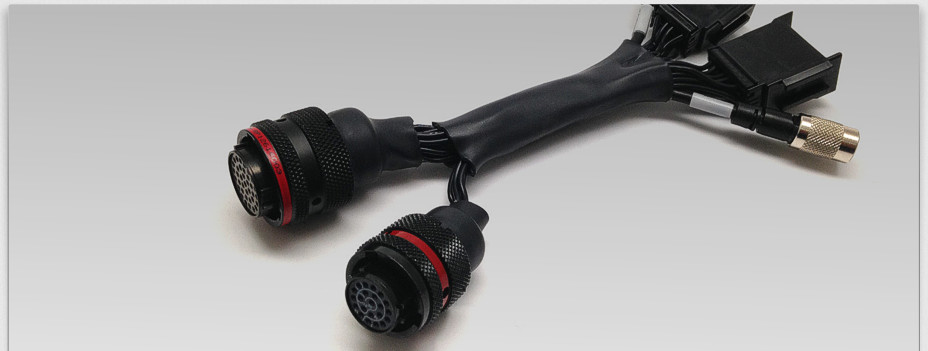

AiM MXL 2 to Radical Adapter Harness
Upgrade the MXL Pista dash in your Radical to the latest MXL 2 dash (sold separately) quickly and easily with this adapter harness

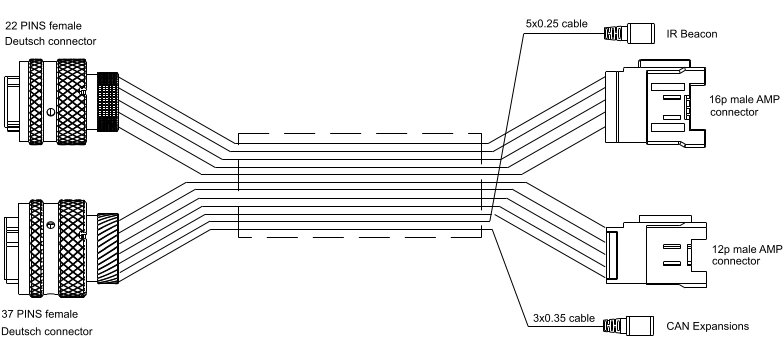

This special harness has one 22-pin and one 37-pin Deutsch connector to plug into the back of your MXL 2 dash. The other end of the harness has connectors designed to accept your current MXL wiring harness. You won’t have to cut wires or re-run any cables. Simply disconnect the two rectangular AMP connectors and the two screw-in connectors from the back of your MXL and plug them into this harness.
This harness is also compatible with the AiM MXG dash. It can also be used in vehicles other than the Radical, but it will block access to some of the advanced features of the MXL 2 and MXG.
Note: For full access to all of the advanced features of the MXL 2 / MXG dashes, the AiM MXL Pista to MXL 2 / MXG Adapter Harness does everything this harness does, but it also provides connections for wheel speed channels 2-4, CAN channels 2 and 3, digital outputs 1 and 2, and CAN/K-Line ECU wiring.
